SET 8042PAL

UHF wireless system with 4 handheld microphones

Available Barcode : 8015439280420
Product By: Brand

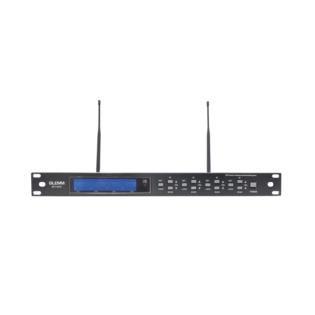

UHF wireless system composed of a receiver and 4 handheld microphones . Conceived to be used together with a high level performance.The operating range is of about 50m. Thanks to the connectors on the back panel it is possible to connect the base to an amplification system.
The MUTE function can be activated thanks to a built-in sensor, by putting down the microphone (after 3 seconds). The same function will be disabled by picking up the microphone again.

It operates in multifrequency mode. The frequency ranges available on the 4 channels are:
1) 725,00 - 749,750 Mhz
2) 750,00 - 774,750 Mhz
3) 725,00 - 749,750 Mhz
4) 750,00 - 774,750 Mhz
Features:
Frequency type UHF
Output connectors XLR + 6,3mm Jack
Display Yes
Operating range 40-50 mt
S/N ratio > 90dB
Frequency response 60Hz - 15KHz
Color black
Weight TX: 0.31Kg RX: 1,84Kg
Product dimensions TX 250 x 50 x 50 mm RX: 175 x 40 x 190 mm
Power supply 220V
Notes TX: Dark Gray - RX: Black
Dichiarazione di conformitą Download
Dichiarazione di conformitą Rohs Download
Instruction manual IT-EN ver 24.2 Download
