PAA 240DMB

240W amplifier with DAB

Available Barcode : 8015439122409
Product By: Brand

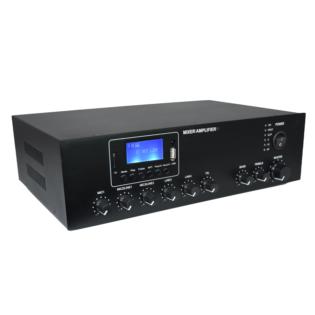

Amplifier intended for PA system installations. It includes a Mp3 module offering the possibility to play tracks from USB/SD, a bluetooth receiver and a last generation FM/DAB+ module.
It is suitable both for constant voltage and low impedance connection of speakers with a maximum power of up to 240W. It features 3 mic inputs and 4 line inputs. The MIC 1 input is XLR type and supports +48V phantom power for condenser microphones and priority function.
It also features tel paging, 24V power supply and several protection circuits.
Features:
Matrix No
DC Power 24V
Bluetooth Ver. 5.0
RMS power 120W
8 Ohm max power 240W
Impedance 4 - 8 - 16 Ohms
Voice priority function Yes, on MIC 1 only
VU METERS Yes
Phantom Key Yes
Tel paging function Yes
Mp3 player Yes
MP3 compatible Yes

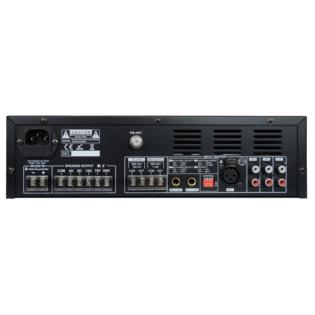

Input connectors XLR + RCA + Jack 6,3mm
Output connectors screw terminal
Line inputs 4
Mic inputs 3
Constant voltage 70 - 100V compatible
S/N ratio Line >85dB, Mic >72dB
Frequency response 60Hz - 15KHz
Color black
Weight 4.5
Product dimensions 320 x 210 x 90
Power supply 220V
Dichiarazione di conformità Download
Manuale 25.1 Download
Scheda tecnica Download
