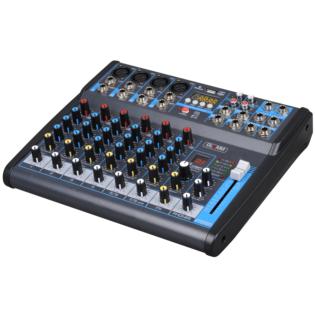

MXP 08

8-channel microphone mixer

In Arrival Barcode : 8015439260088
Product By: Brand

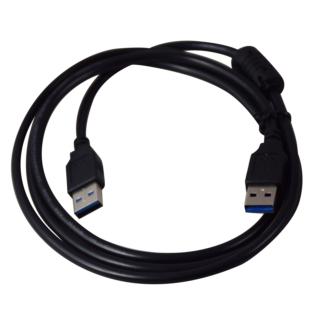

8-channel microphone mixer for professional appliance thanks to its many functions. It allows connection of 4 balanced microphones and up to 8 line signals. Each channes is endowed with independent tone control. A particular DSP offers 16 preset reverb effects. The MP3 module can reproduce tracks from USB keys. The same USB socket can be used for connection to PCs or to send or receive audio signals (cable included). It also comes with bluetooth receiver.


DSP chart
Effects Echo delay
01 12.3ms
02 24.6ms
03 36.9ms
04 49.2ms
05 61.4ms
06 73.7ms
07 86.0ms
08 98.3ms
09 110.6ms
10 122.9ms
11 135.2ms
12 147.5ms
13 159.7ms
14 172.0ms
15 184.3ms
16 196.6ms


Features:
Input connectors XLR + RCA + Jack 6,3mm
Output connectors XLR + 6,3mm Jack
Line inputs 8
Mic inputs 4
Number of channels 8
Effects DSP 16bits
Phantom Key Yes, it allows to enable phantom power for condenser microphones
VU METERS Yes
Frequency response 20 Hz - 20 KHz
Color black
Weight 1.7
Product dimensions 371 x 258 x 80 mm

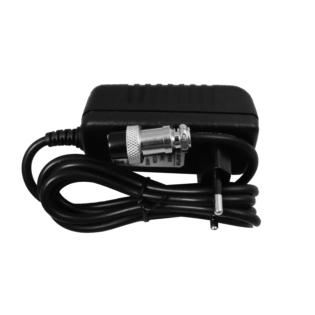

Power supply 110V - 220V
Dichiarazione RED Download
manuale Download
