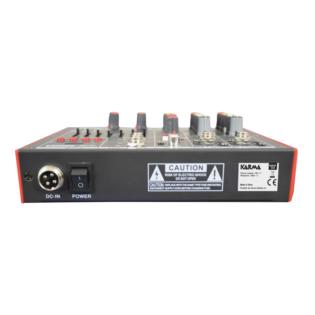

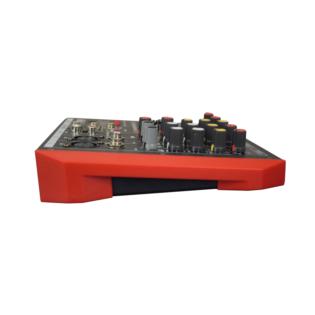

MXM 04

4CH Microphone Mixer

Available Barcode : 8015439240042
Product By: Brand
Compact audio mixer with 4 channels for simultaneous mixing of 2 balanced signals (line or mic), 1 channel via RCA (line) and 1 digital signal (mp3 or bluetooth player). It has a graphic 7-band equalizer and an echo effect that can be inserted on microphones. The first 2 channels can also manage, through XLR, condenser microphones thanks to phantom power supply. The USB socket allows the connection to PCs to use the mixer as if it were an audio card.

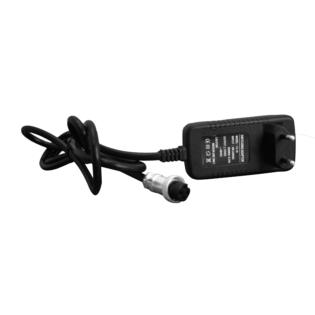

It is powered by an external transformer included in the package
Features:
Input connectors XLR + RCA + Jack 6,3mm
Output connectors 6,3mm jack
Line inputs 4
Mic inputs 2
Number of channels 4
Graphic equalizer Yes
Echo function Present
Effects Send /return for external effects
Phantom Key Yes, it allows to enable phantom power for condenser microphones
VU METERS Yes
Pre-listening No
Frequency response 10 Hz - 60 Khz (+/-3dB)
Color Grey & black
Weight 1
Product dimensions 205 x 19 x 55 mm
Power supply 15V DC through adaptor
Notes bluetooth and sound card mode
Dichiarazione di conformitą RED Download
Dichiarazione di conformitą RoHS Download
Manual Download
